Interface Types

Interface types classify your interfaces by their technical origin. This helps you organize and filter your inventory, especially when working with multiple integration technologies.

Auto-Discovery vs. Manual Entry

Understanding the difference helps you choose the right approach for documenting interfaces.

Auto-Discovered Interfaces:

• Pulled automatically from configured Data Sources

• Update regularly via scheduled discovery jobs

• Get platform-specific types (SAP_IS_CI, AZURE_LA_STD, MULE_API)

• Include detailed metadata from source systems

• No manual maintenance required

Manually Created Interfaces:

• Created via UI or Management API

• Requires LOCAL Data Source assignment

• Use generic types (APIM, ESB, BROKER, BACKEND, MFT, OTHER, PLANNED)

• Needs manual metadata maintenance

• Useful for platforms without connectors

Interface Types Reference

Interface types are automatically assigned when using Data Source connectors (auto-discovered types) or manually selected when creating entries yourself (manual types).

Auto-Discovered Types

When you configure Data Sources with predefined connectors, interfaces get their type automatically assigned:

Show all auto-discovered interface types (SAP, Azure, MuleSoft, Solace...)

SAP Integration Suite:

• SAP_IS_CI: Cloud Integration (CPI) flows

• SAP_IS_APIM: API Management proxies

• SAP_EVENTMESH: Event Mesh subscriptions and topics

SAP Process Orchestration:

• SAP_PO: Process Orchestration ICO Interfaces

• SAP_PO_CI: Cloud Integration (iFlows) in PO

SAP ABAP Backends:

• SAP_IDOC: IDoc (ALE) interfaces

• SAP_SOAP: SOAP web services (WS, XI)

• SAP_ODATA: OData APIs

• SAP_RFC: RFC destinations

• SAP_XI: Process Integration interfaces

Microsoft Azure Integration Services:

• AZURE_APIM: API Management

• AZURE_LA_CON: Logic Apps (Consumption)

• AZURE_LA_STD: Logic Apps (Standard)

• AZURE_SB_QUEUE: Service Bus queues

• AZURE_SB_TOPIC: Service Bus topics

• AZURE_EVENTGRID: Event Grid topics

• AZURE_FUNCTION: Azure Functions

MuleSoft Anypoint:

• MULE_API: MuleSoft APIs

• MULE_APP: MuleSoft Applications

Solace PubSub+:

• SOLACE_QUEUE: Queues

Note: You don't select these types manually—they're assigned automatically based on your Data Source connector configuration.

You don't select these types manually—they're assigned automatically based on your Data Source connector configuration.

For detailed Data Source Setup instructions, see Integration Layer in the Onboarding Guide.

For supported Data Sources and integration platforms, please visit: Data Sources & Integrations support

Manual Types (LOCAL Data Sources)

For platforms without predefined connectors, or when manually creating entries, use these types:

Show all manual interface types (APIM, ESB, BROKER, BACKEND, MFT, PLANNED, EAM, OTHER)

APIM in gleicher Darstellung wie oben – API Management
Use for API management gateways and API proxies not covered by auto-discovery.

Examples: AWS API Gateway, Kong, Apigee (on-premise), Tyk, custom gateways

ESB – Enterprise Service Bus
Use for integration middleware and ESB platforms without connectors.

Examples: Talend, BizTalk, Dell Boomi, Lobster, Seeburger BIS, TIBCO BusinessWorks, IBM Integration Bus, Oracle Service Bus

BROKER – Message Broker
Use for message brokers, queues, and event streams not covered by auto-discovery.

Examples: RabbitMQ, IBM MQ, ActiveMQ, Amazon SQS, MQTT brokers

BACKEND – Business Application
Use for interfaces originating from business systems not covered by SAP ABAP connector.

Examples: Salesforce, Workday, ServiceNow, custom applications, legacy systems (Mainframe, AS/400)

MFT – Managed File Transfer
Use for Managed File Transfer platforms.

Examples: IBM Sterling, Axway, GoAnywhere MFT

PLANNED – Planned Interface
Use for interfaces that are planned but not yet built.

Track development progress with PLANNED type. Once built and auto-discovered, remove or update the planned entry to avoid duplicates.

EAM – Enterprise Architecture
Use for interfaces documented in Enterprise Architecture Management tools.

Note: This type appears automatically when syncing with LeanIX, LUY, HOPEX, or Bee360.

OTHER – Other Technologies
Use when none of the above categories fit.

Examples: SFTP/FTP, AS2/EDI, email-based integrations, IoT devices, custom protocols

For complete interface type reference numbers (Type 0-26) for the Management API, see Integration Types Reference in the Management API Documentation

Manual Types

This section covers when to use manual types, how to select the right type, and how to create manual interfaces.

When to Use Manual Types

You need manual interface types when:

Type Selection Guide

Decision Logic:
Ask yourself: Where does this interface run or what handles it?

• Middleware doing routing/transformation → ESB

• API gateway managing APIs → APIM

• Messaging infrastructure → BROKER

• Business application → BACKEND

• File transfer platform → MFT

• Planned but not built → PLANNED

• None of the above → OTHER

Creating Manual Interfaces

Manual interfaces require two prerequisites:

1. A LOCAL Data Source to contain the interfaces

2. Optional: Systems (sender/receiver) to map the interface endpoints

For complete guidance on systems, objects, and their role in your integration landscape, see Landscape: Systems & Objects.

Step 1: Create a LOCAL Data Source

Manual interfaces require a LOCAL Data Source - your container for manually maintained interface entries.

When to Create a LOCAL Data Source

Create LOCAL Data Sources for:

• Interfaces from platforms without connectors (Kafka, Lobster, TIBCO, Seeburger)

• Planned interfaces during project planning phase

• Partner/external integrations you can't scan automatically

• Legacy systems without API access

• API-pushed interfaces from custom tools

Naming Strategy: Use descriptive names to organize different categories:

• "Manual Interfaces - Kafka"

• "Planned Integrations Q1 2026"

• "Partner Interfaces - B2B"

• "Legacy - Mainframe"

Step-by-Step: Create a LOCAL Data Source

Step 1: Navigate to Settings → Connectivity → Data Sources

Step 2: Click the "+" button to add a new Data Source

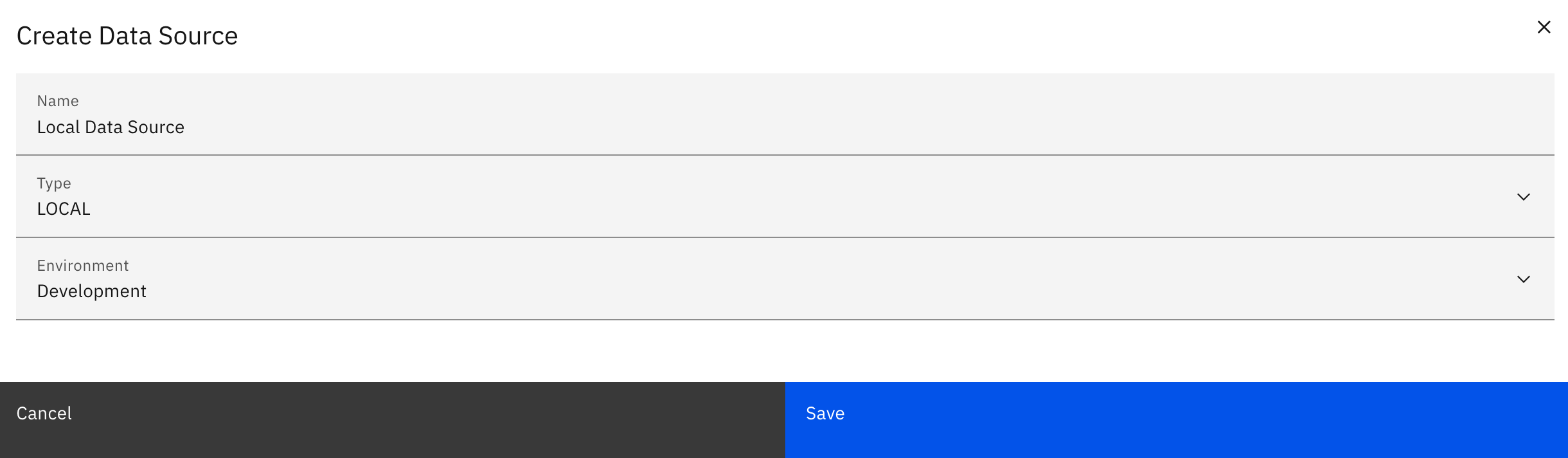

Step 3: In the Create Data Source dialog, configure:

• Name: Descriptive name (e.g., "Manual Interfaces - Lobster", "Planned - Q1 2026", "Partner Interfaces - B2B")

• Type: Select LOCAL from dropdown

• Environment: Select appropriate environment (Production, Development, Quality, Test)

Step 4: Click “Save”

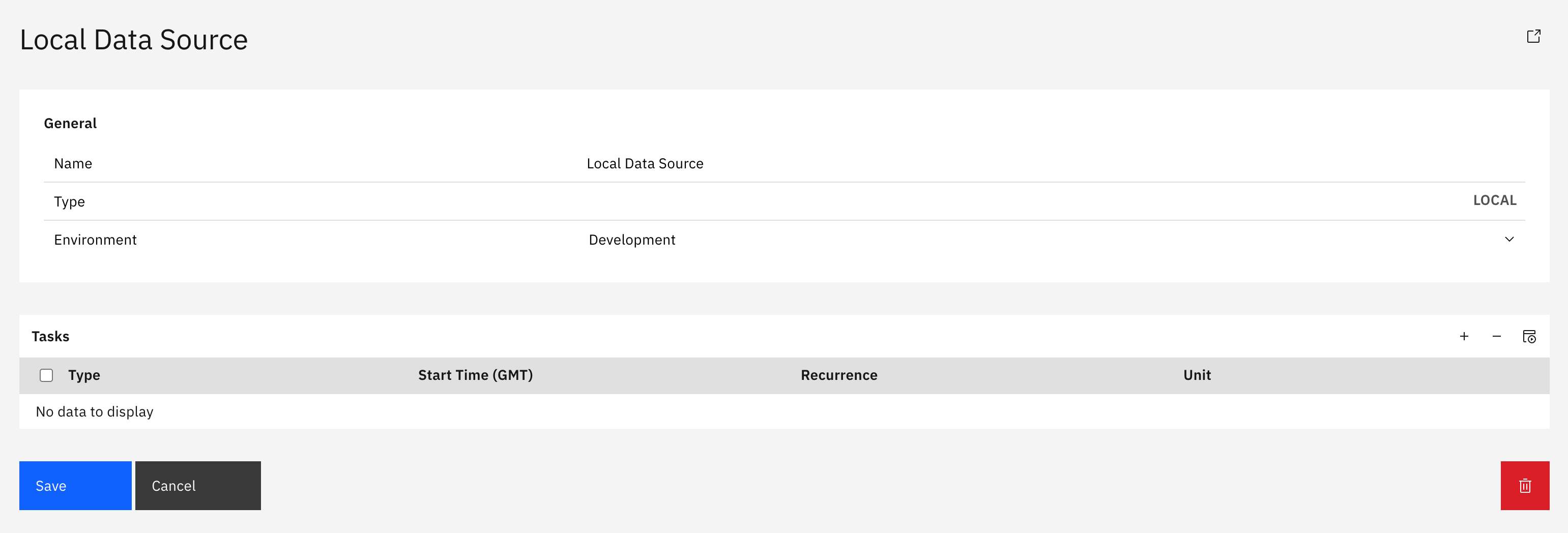

Your LOCAL Data Source is now ready to receive manually created interfaces.

Step 2: Create Manual Interfaces

Once you have a LOCAL Data Source and defined systems, you can create manual interfaces.

Step-by-Step: Create a Manual Interface

Step 1: Navigate to Inventory → Interfaces → Catalog

Step 2: Click the "+" button in the toolbar

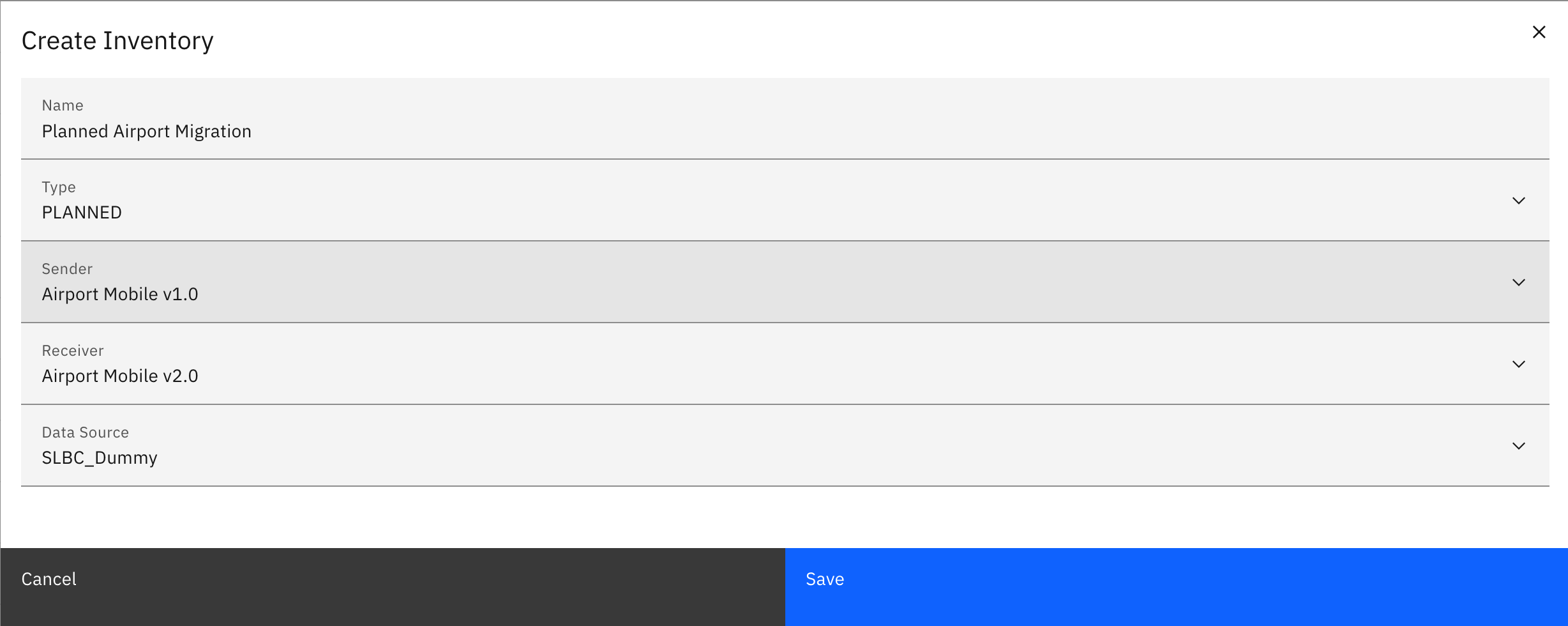

Step 3: In the Create Inventory dialog, fill in the required fields:

• Name: Interface identifier (e.g. "Salesforce_Account_Export", "Kafka_OrderEvents")

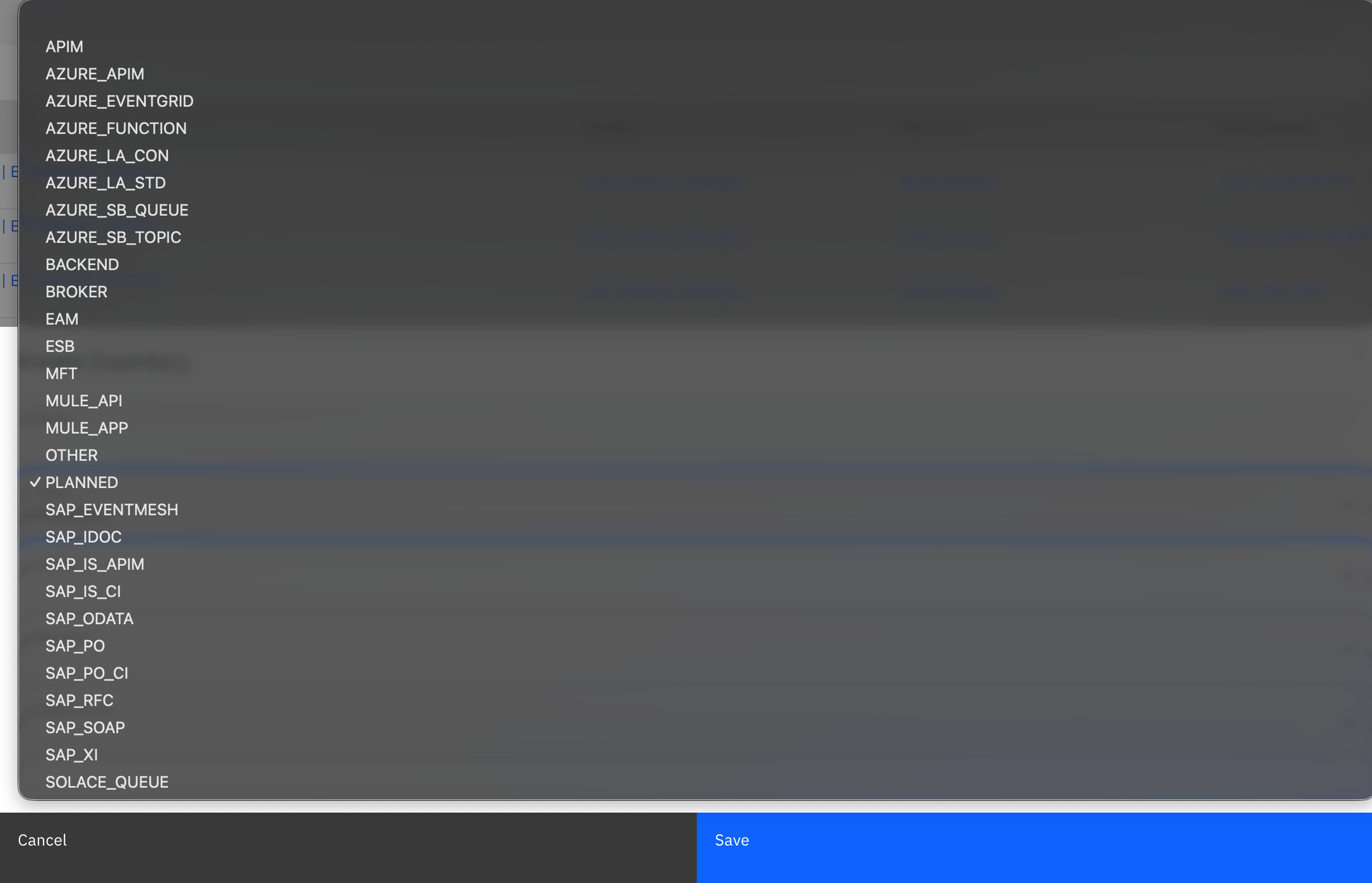

• Type: Select from dropdown: APIM, ESB, BROKER, BACKEND, MFT, PLANNED, EAM, or OTHER

• Sender: Select the source system from dropdown (create in Landscape → Systems if needed)

• Receiver: Select the target system from dropdown

• Data Source: Select your LOCAL Data Source created in the previous step

Step 4: Click “Save”

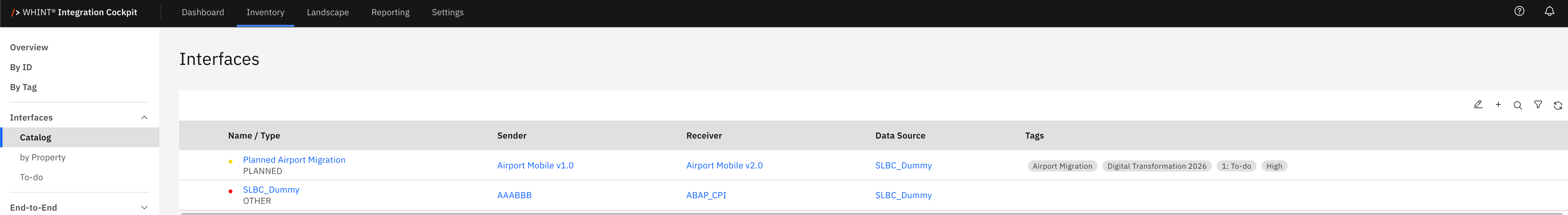

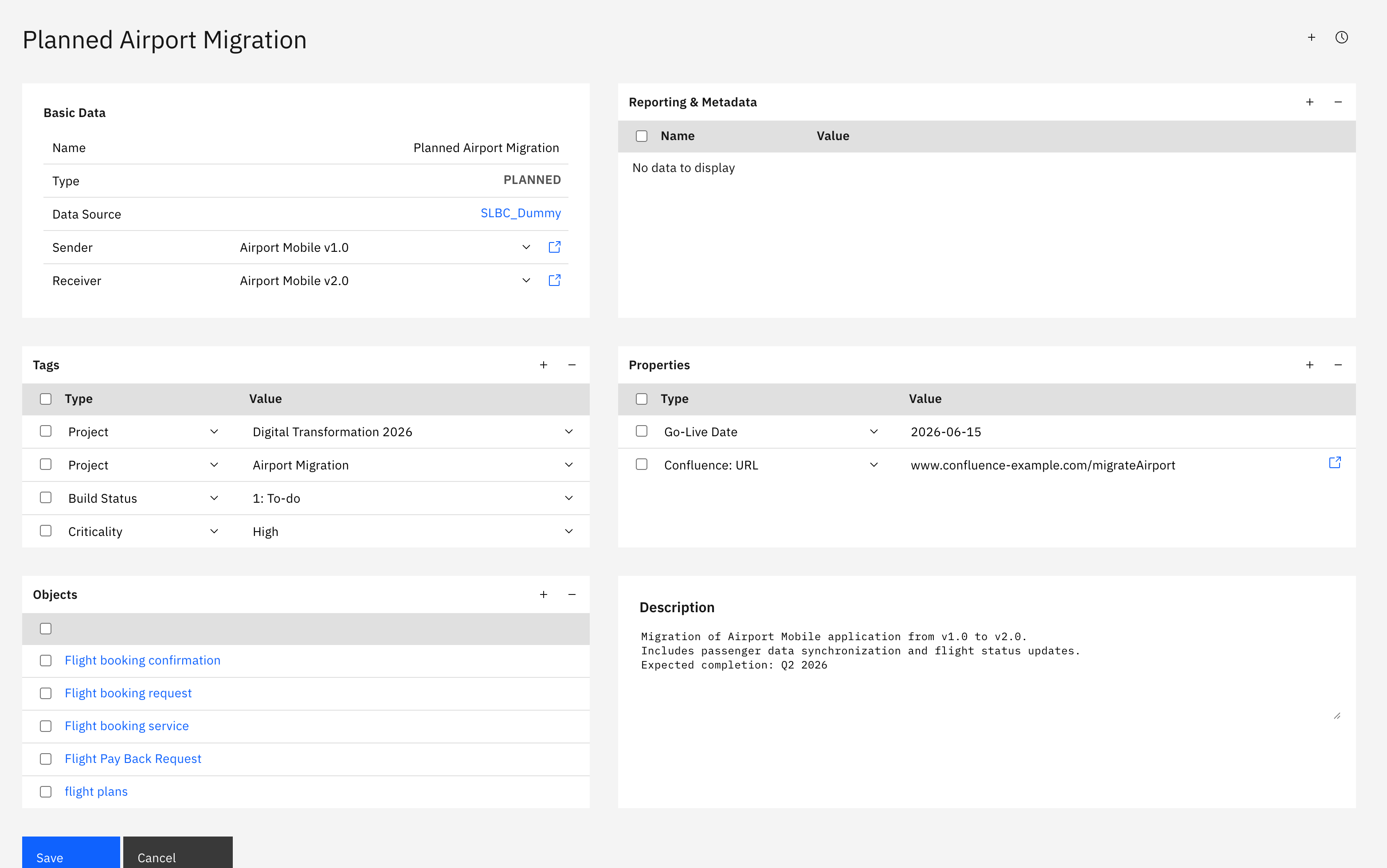

Step 5: The interface appears in the catalog and can be enriched with:

• Tags for categorization (Domain, Criticality, Project)

• Properties for custom metadata (Go-Live Date, Confluence URL)

• Objects for business object mapping (see Landscape → Objects)

• Description for detailed documentation

Important: Manual interfaces must be assigned to a LOCAL Data Source. Interfaces without a Data Source won't appear correctly in reports, landscape analysis, or End-to-End integration mapping.

Working with Interface Types

This section explains how to filter interfaces by type, understand the difference between Type and Data Source, and when to use auto-discovery vs. manual entry.

Filtering by Type

Use type-based filtering to focus on specific integration technologies or manually created entries.

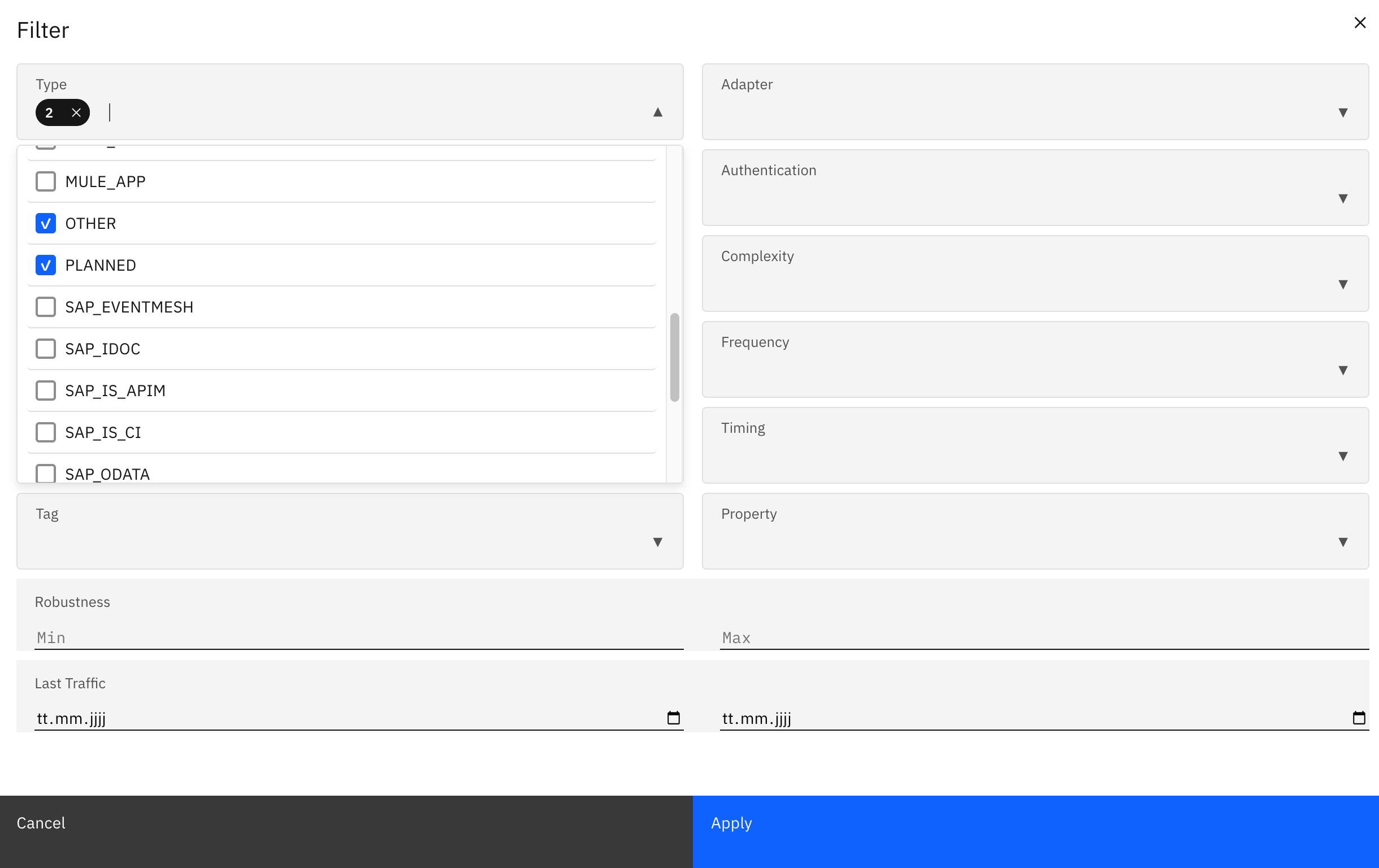

Filter Interfaces by Type

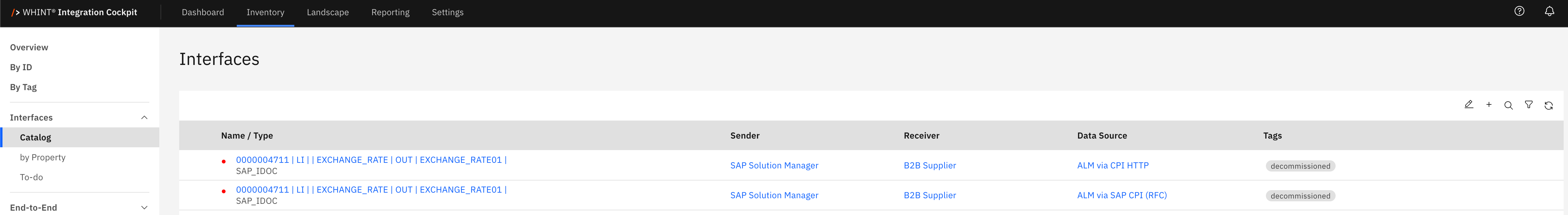

Step 1: Navigate to Inventory → Interfaces → Catalog

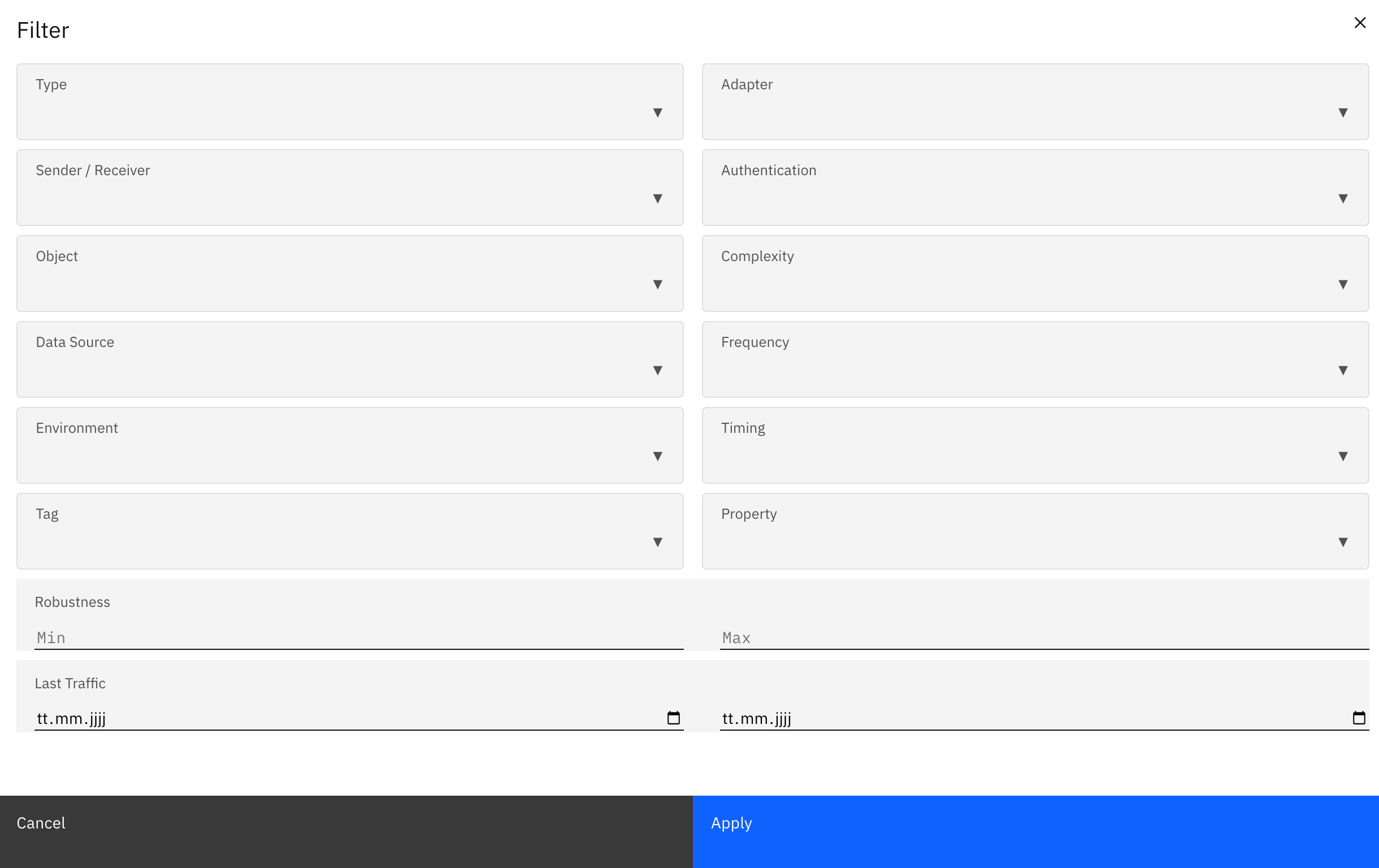

Step 2: Click the Filter button in the toolbar

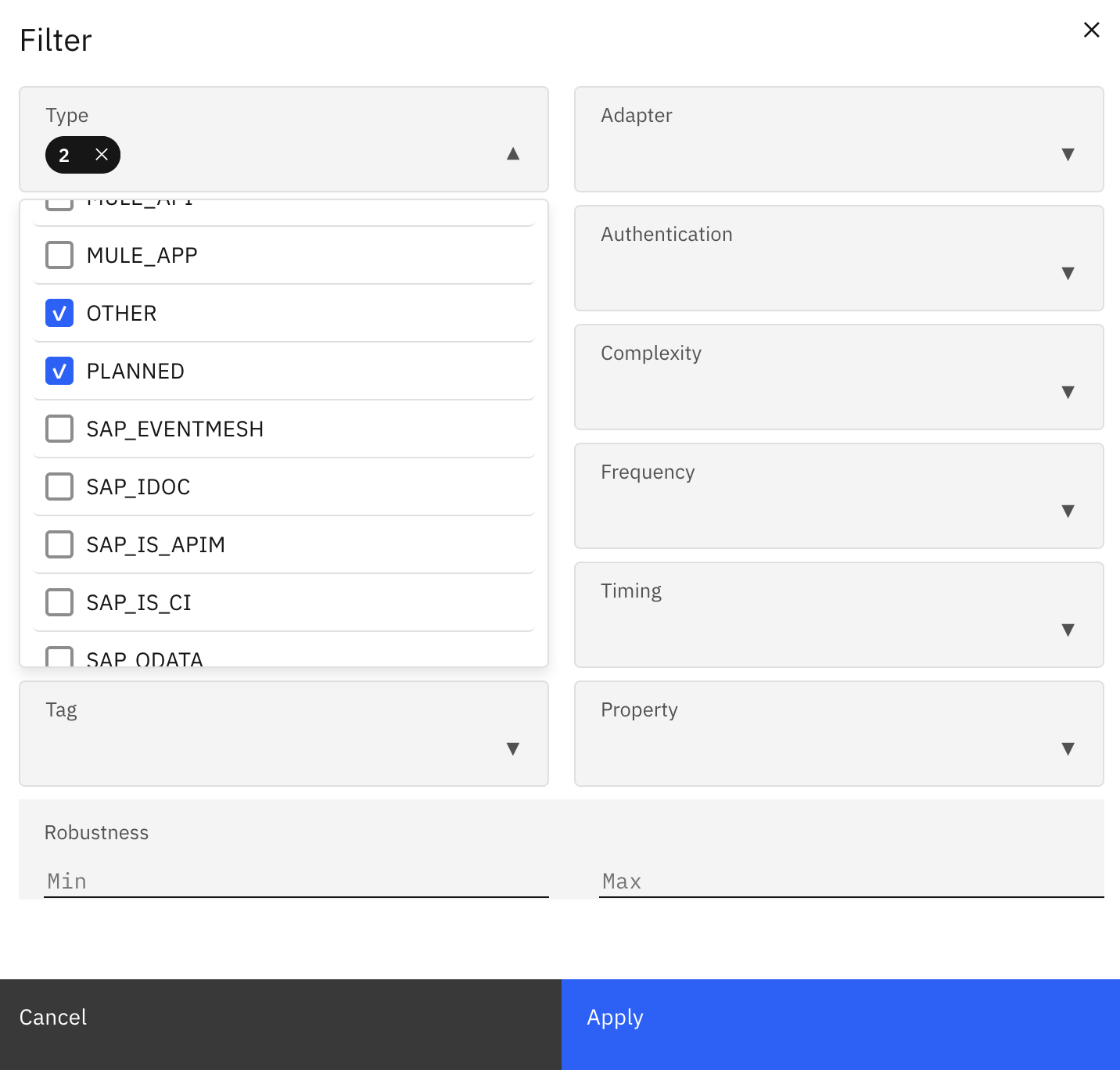

Step 3: Expand the Type dropdown

Step 4: Select one or multiple types

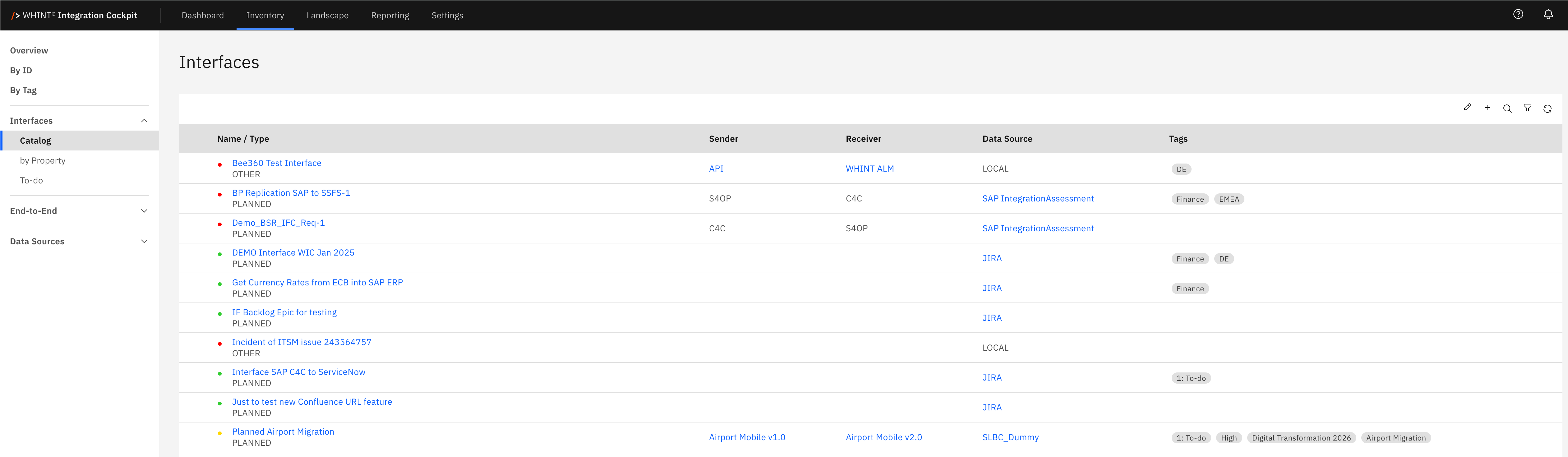

Step 5: Click Apply to show only interfaces of selected types

Filter by LOCAL Data Sources

Filter by LOCAL Data Sources

To see only manually created interfaces, filter by your LOCAL Data Sources:

Step 1: In Inventory → Interfaces → Catalog, click the Filter button

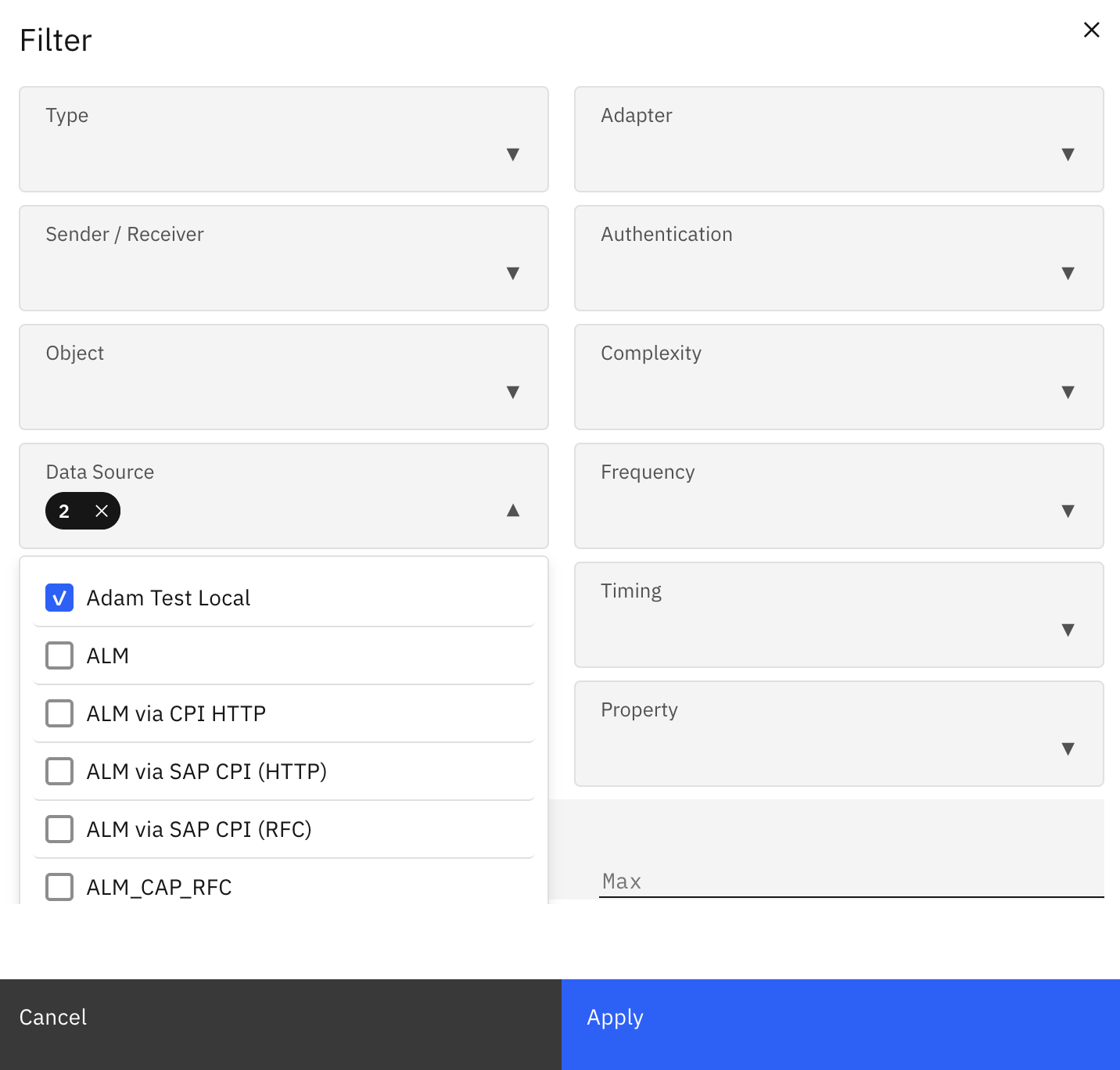

Step 2: Expand the Data Source dropdown and select your LOCAL Data Source(s)

Step 4: Optionally combine with Type filter for more precise results

Step 5: Click “Apply”

---

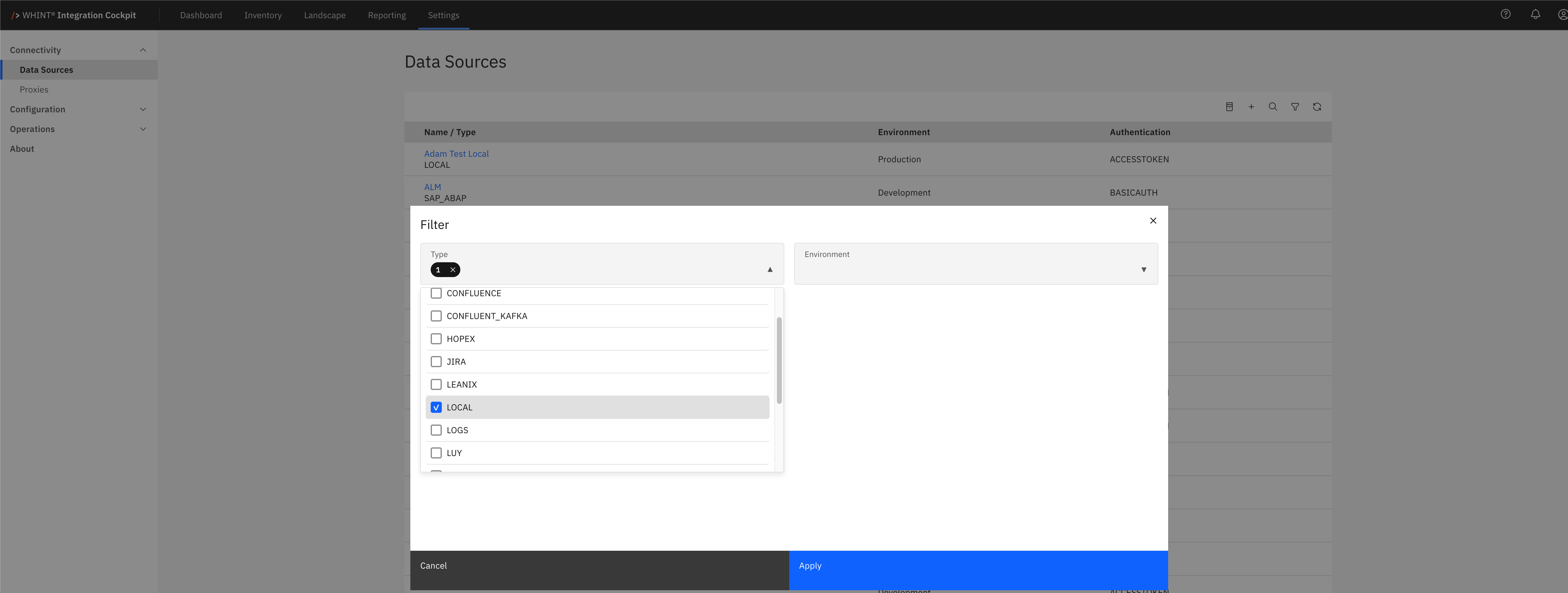

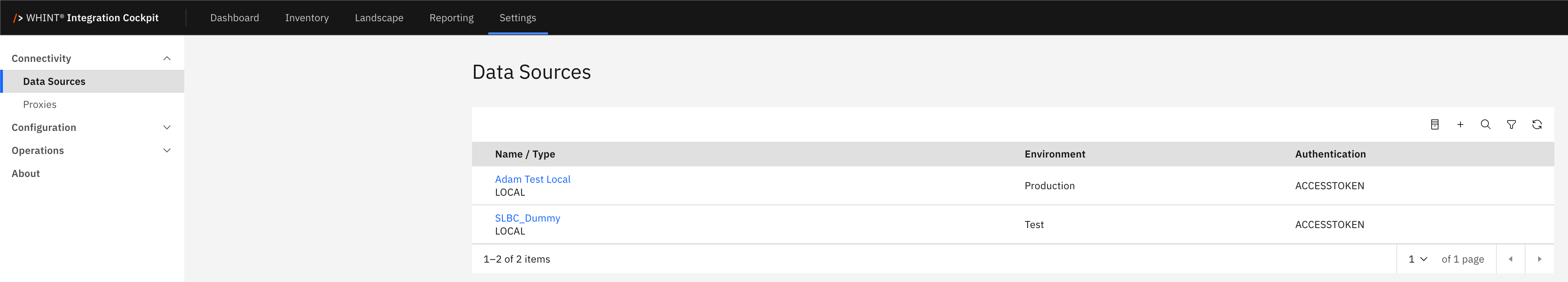

Alternative: In Settings → Connectivity → Data Sources, use the Type filter to show only LOCAL Data Sources.
This helps identify all containers for manual interfaces in your landscape.

Use filtering to:

• Focus on specific platforms (e.g. all SAP_IS_CI flows)

• Separate auto-discovered from manual entries

• Identify planned interfaces for project tracking

• Analyze technology distribution across your landscape

• Review manual entries requiring validation

Understanding: Type vs. Data Source

Many users confuse Type and Data Source. Here's the difference:

Both fields work together to classify and organize your interface inventory.

Best Practices

Follow these guidelines to maintain a clean, consistent, and accurate interface inventory.

Be Consistent
Use the same type for similar technologies across your landscape. If you classify one RabbitMQ topic as BROKER, classify all RabbitMQ topics as BROKER.

Don't Mix Discovery Methods
Don't create manual entries for platforms that have auto-discovery connectors. Use the proper Data Source connector instead to benefit from automatic updates.

Always Map to Systems
Always assign correct Sender and Receiver systems. This ensures proper landscape connectivity analysis and End-to-End integration mapping. Systems represent your applications and partners in the integration landscape.

Add Descriptive Metadata
Since manual interfaces aren't auto-discovered with metadata, use:

• Clear, descriptive interface names

• Comprehensive descriptions

• Relevant tags for categorization

• Custom properties for tracking

Assign Business Objects
Map interfaces to business objects (e.g. "Sales Order", "Customer Data") using Transformation Rules. This provides business context and enables data flow analysis.

Review Regularly
Check if platforms without connectors get connector support added. For example, Confluent Kafka connector support is currently in development—monitor release notes for availability.

Tag Manual Entries
Add tags like "manual" or "api-pushed" to distinguish manually created entries from auto-discovered interfaces. This helps with filtering and governance reporting.

Use LOCAL Data Sources Strategically
Create separate LOCAL Data Sources for different categories:

• "Manual Interfaces - Kafka" for Kafka topics until connector is available

• "Planned Integrations Q1 2026" for project planning

• "Partner Interfaces - B2B" for external systems

• "Legacy - Mainframe" for legacy systems

This organization improves filtering and reporting clarity.

Advanced Topics

Interface Types in End-to-End Integrations

Interface types don't restrict how you build End-to-End (E2E) integrations. You can combine any interface types in an E2E flow:

Example E2E chain: BACKEND → ESB → APIM → BACKEND

This shows a complete integration from source system through middleware and API layer to target system, regardless of whether interfaces are auto-discovered or manually created.

Learn more:

• Create End-to-End Integrations manually

• Auto-Generated E2E Proposals (SAP IS CI)

Analyzing Your Integration Landscape

Use interface type filtering and analysis to:

Navigate to Reporting → Overview to see aggregated interface type distributions and technology trends across your landscape.

Last Updated: January 15, 2026
