The End-to-End visualization shows a single system and all End-to-End integrations in which it acts as sender or receiver, including the interfaces that make up each integration.
Purpose: Understand which End-to-End integrations a system participates in, which systems are connected at the other end, and which interfaces make up each integration.
Navigate to Reporting → Landscape → Visualization → by System → End-to-End to open the visualization.

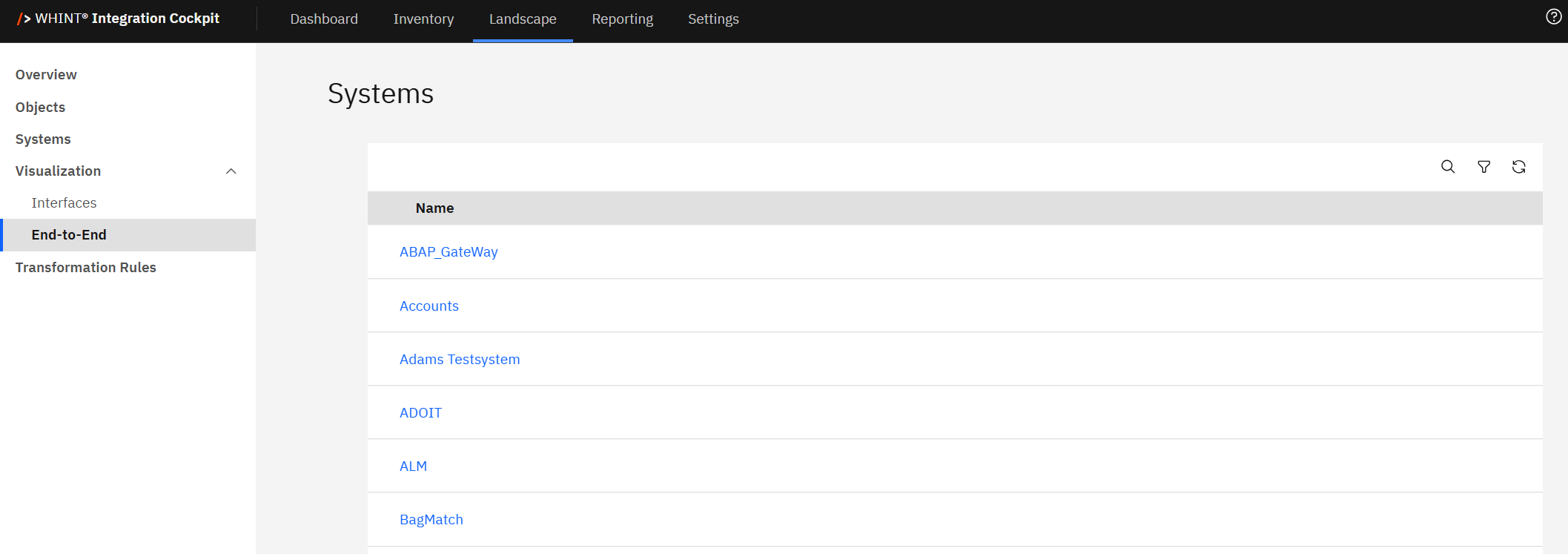

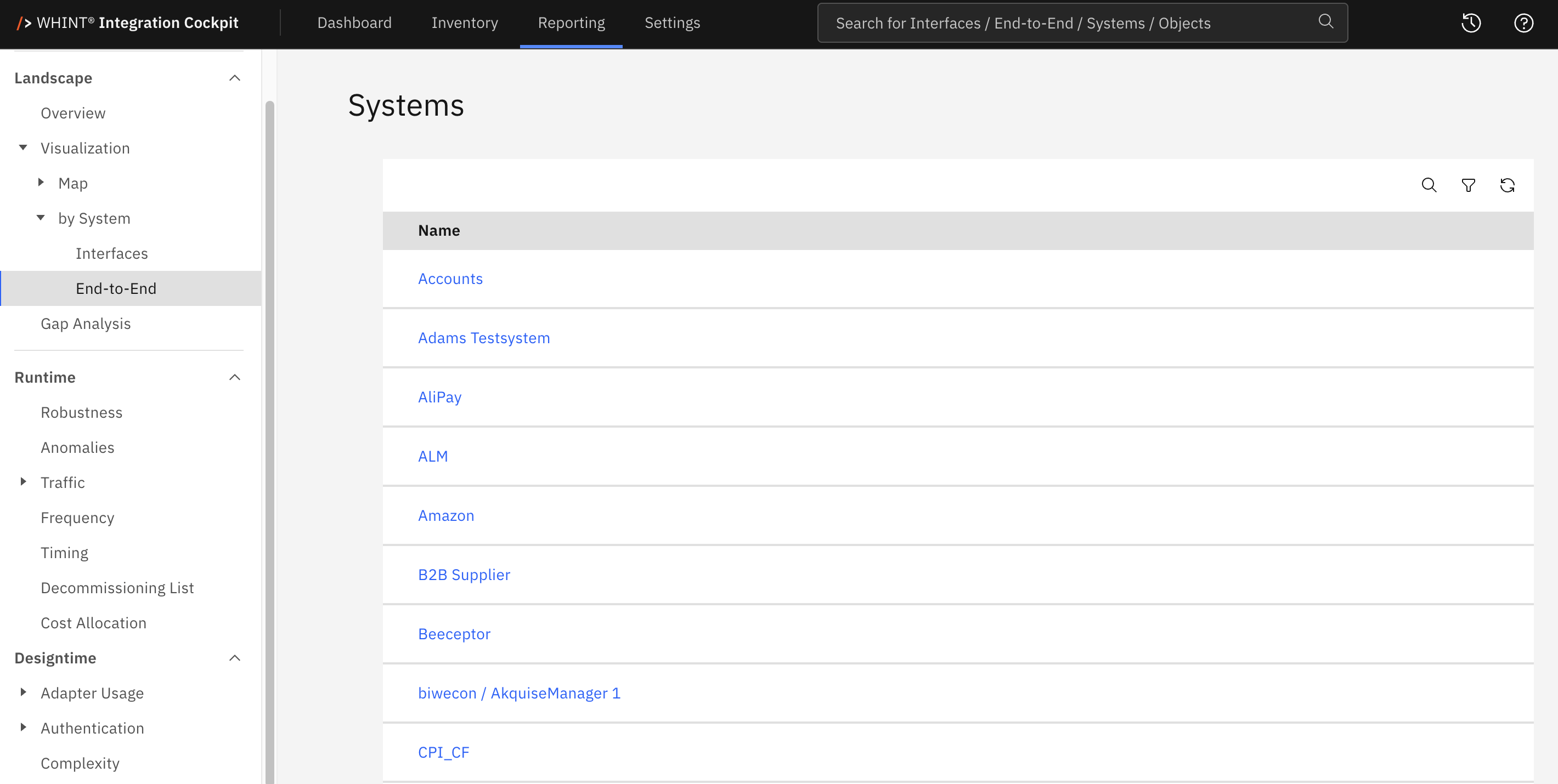

System Selection
The list shows the harmonized system names. Select a system to open its visualization.
The list includes systems that participate in at least one End-to-End integration with both a sender and receiver assigned, including systems that are an additional receiver of an integration.
Use the toolbar controls above the list:
-
Search — Find systems by name or description
-
Filter — Limit the list by Data Source and Environment
The list opens with Production selected.
Alternatively, open the visualization for a single system directly from Inventory → Landscape → Systems using Visualization → End-to-End on the system details.
System Visualization

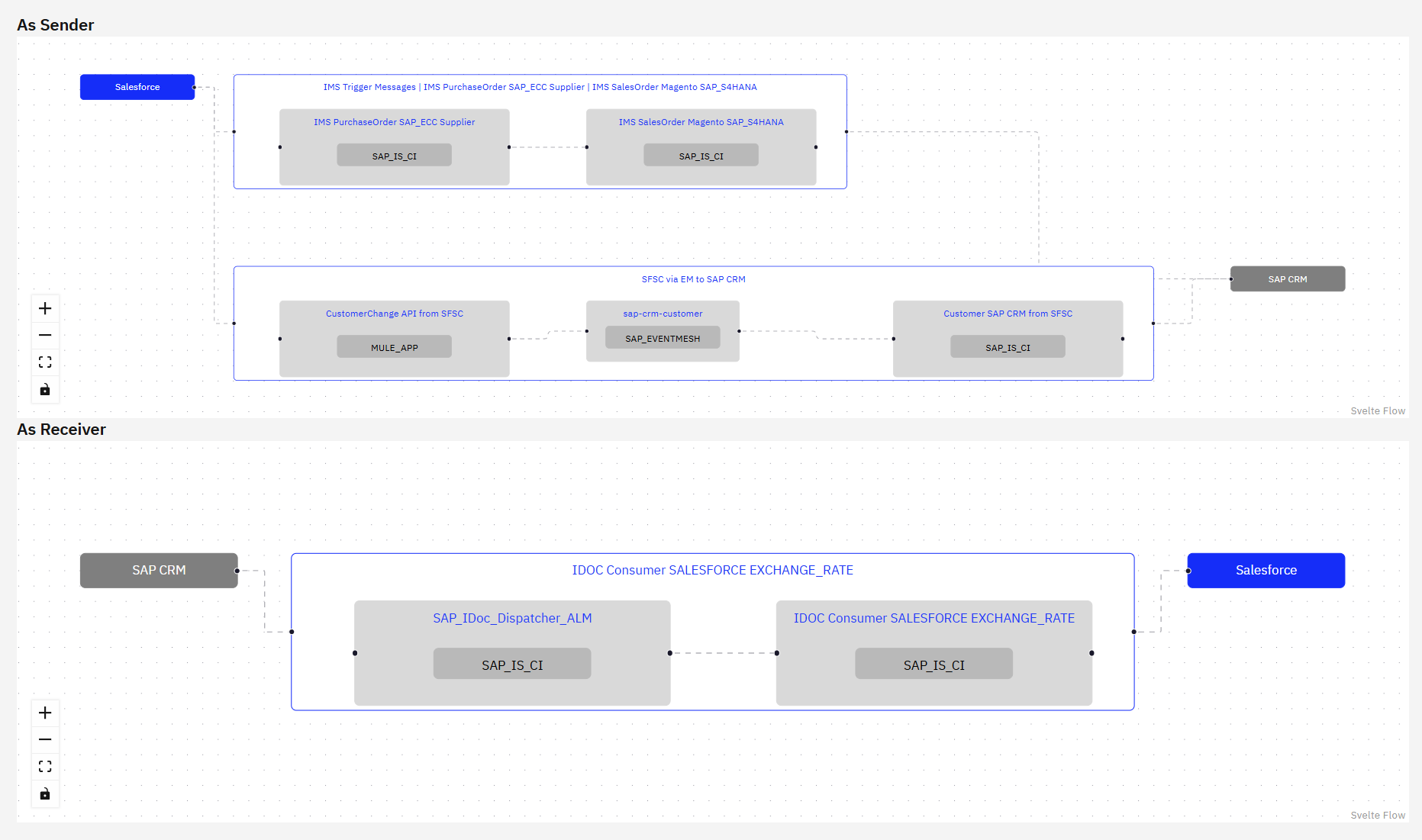

The diagram is shown in up to two sections:
-

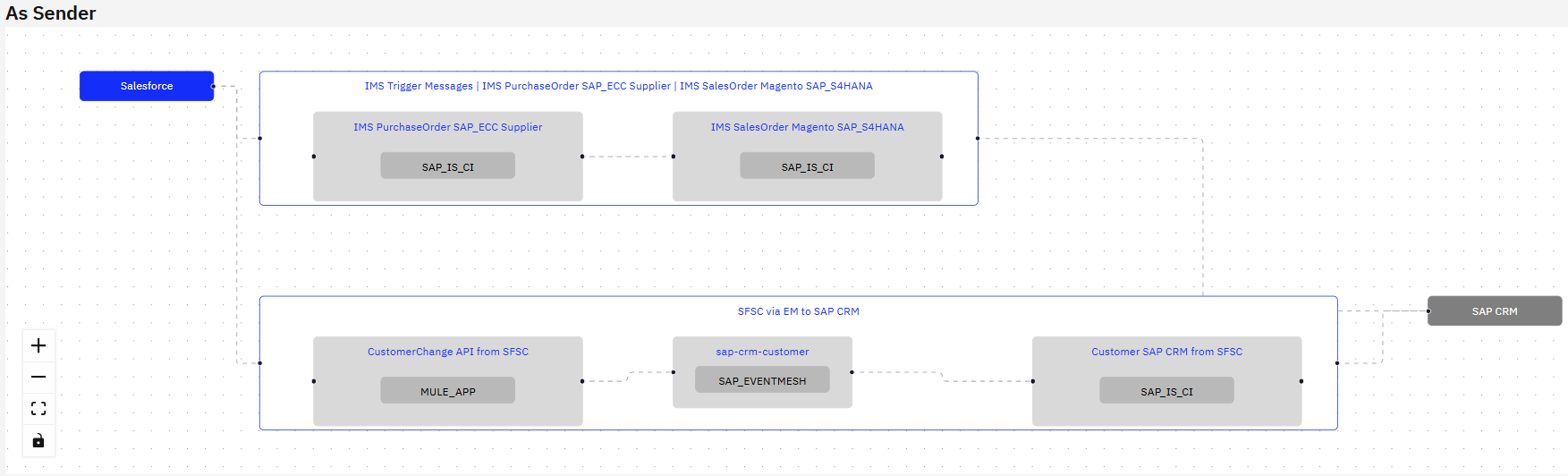

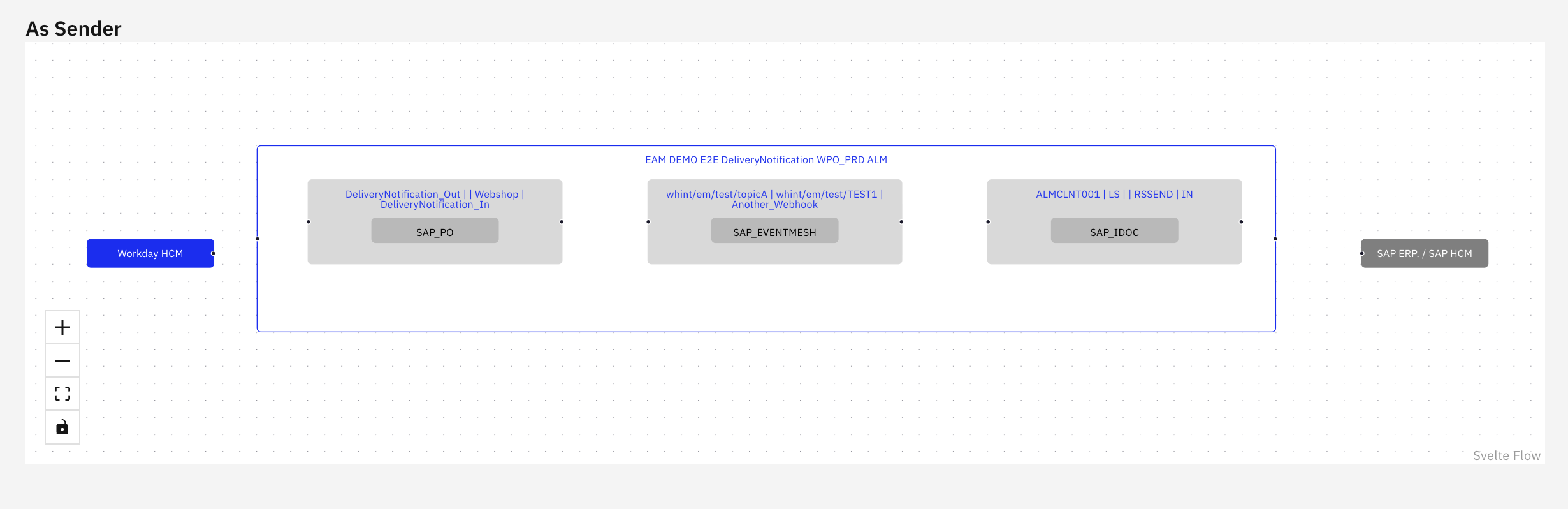

As Sender — End-to-End integrations that start at the selected system. The selected system is on the left, and the receiving systems are on the right
-

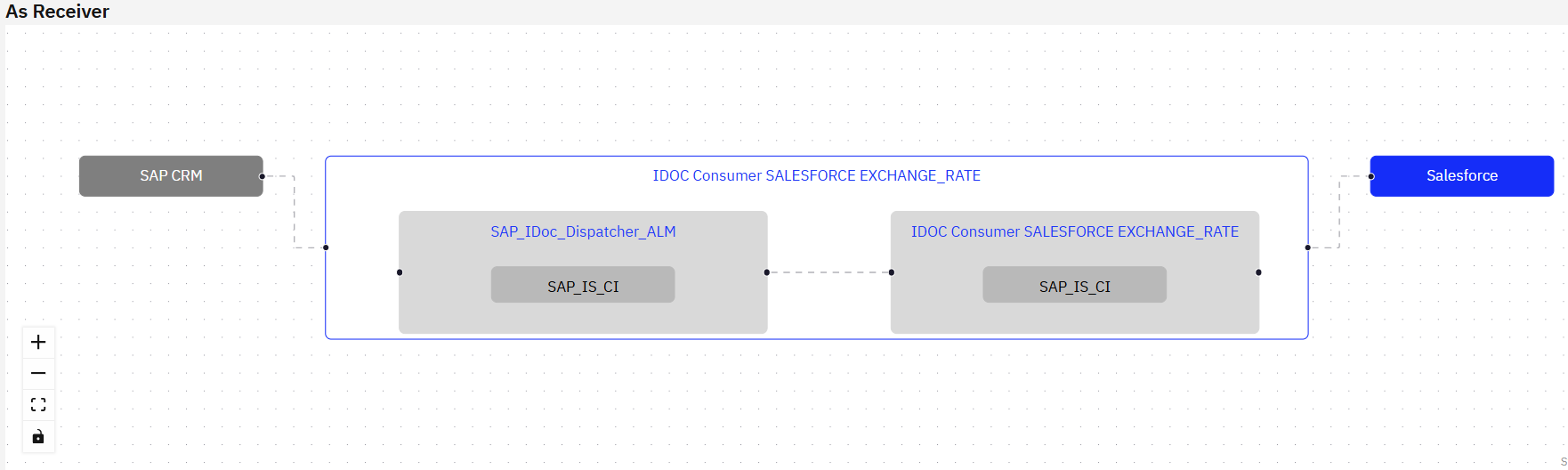

As Receiver — End-to-End integrations that end at the selected system. The sending system is on the left, and the selected system is on the right
A section is only displayed when the system has integrations in that direction.
What you see:
-
Blue node — The selected system
-
Framed box — One End-to-End integration, labeled with its name
-
Gray box inside the frame — One interface of that integration. The label inside the box shows the interface type
-
Gray node — A system on the other side of the integration
Read each row from left to right: the sending system, the End-to-End integration with its interfaces, and the receiving system.
Inside the integration frame, interfaces are arranged in the order in which they are processed. Interfaces that belong to the same step are stacked in one column.
An End-to-End integration can have several receivers. In that case, the integration branches to each receiver on the right.
Click an element to open its details in the Inventory:
|
Element |
Opens |
|---|---|
|
System node |
The system details under Inventory → Landscape → Systems |
|
Integration frame |
The End-to-End details under Inventory → End-to-End |
|
Interface box |
The interface details under Inventory → Interfaces |
The diagram opens with the environment selected in the system list. Use the Data Source and Environment filters in the top right to change the scope; the diagram is rebuilt as soon as a filter is changed.
The controls in the lower left corner allow you to:
-
Plus button (+): Zoom in for detailed view of integration flow containers and component relationships
-
Minus button (-): Zoom out for broader end-to-end process overview
-
Fit view button (□): Single click to automatically adjust view to show all integration flows perfectly
-
Lock button: Lock the view to prevent accidental zooming or moving while analyzing complex flows
Related Documentation
-
Reporting → Landscape → Visualization → by System → Interfaces — View the same system based on single interfaces
-
Reporting → Landscape → Visualization → Map → End-to-End — View all systems and their End-to-End integrations in one map
-
Reporting → Landscape → Overview — View the landscape counts behind the visualization
-
Inventory → End-to-End — Open the End-to-End details shown in the diagram
-
Inventory → Landscape → Systems — Open the system details shown in the diagram
-
Settings → Transformation Rules — Configure system harmonization
