End-to-End (Map)

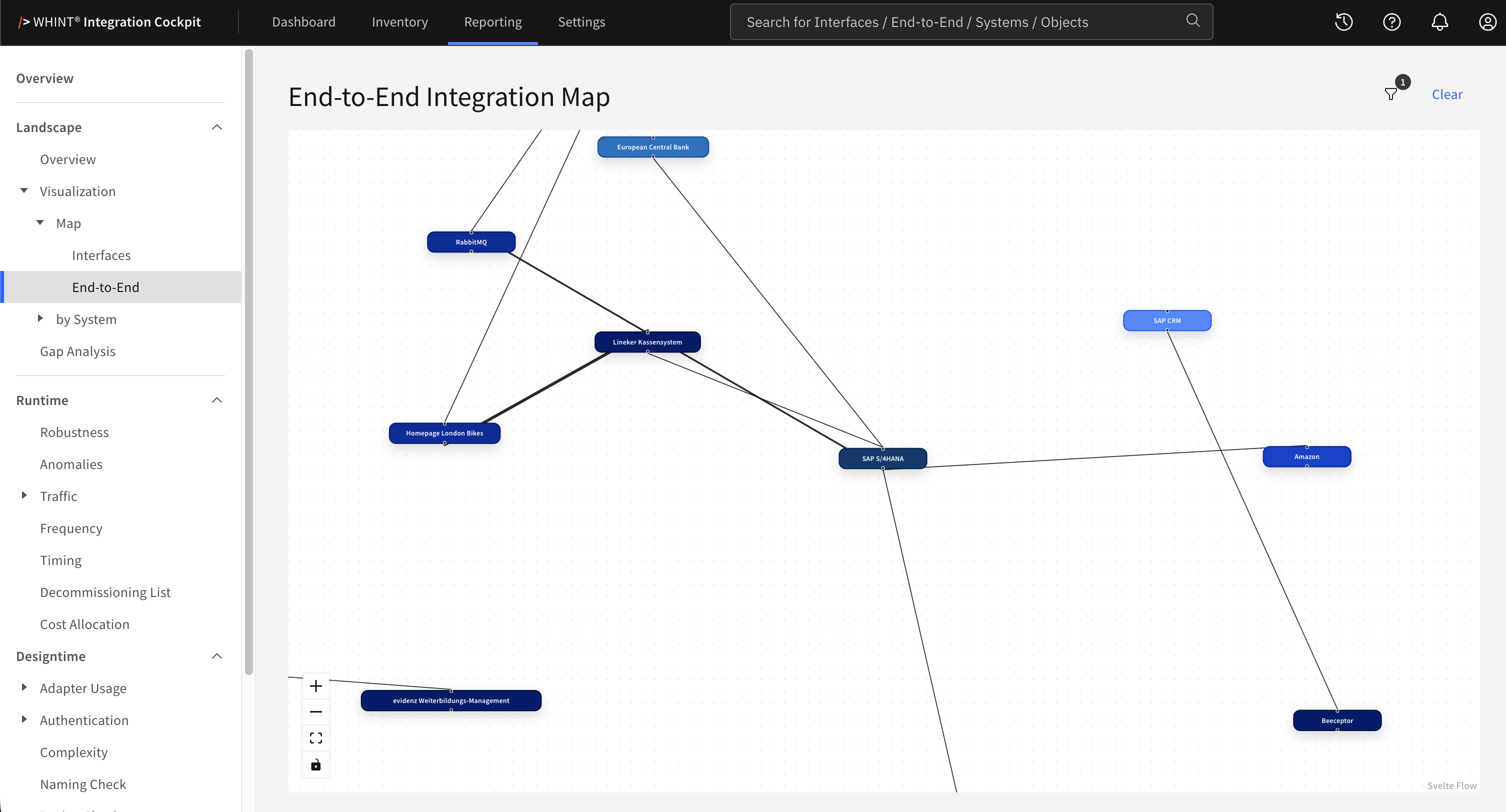

The End-to-End Integration Map shows your integration landscape as a graph. Each node represents a system, and each line represents the End-to-End integrations between two systems.

Navigate to Reporting → Landscape → Visualization → Map → End-to-End to open the map.

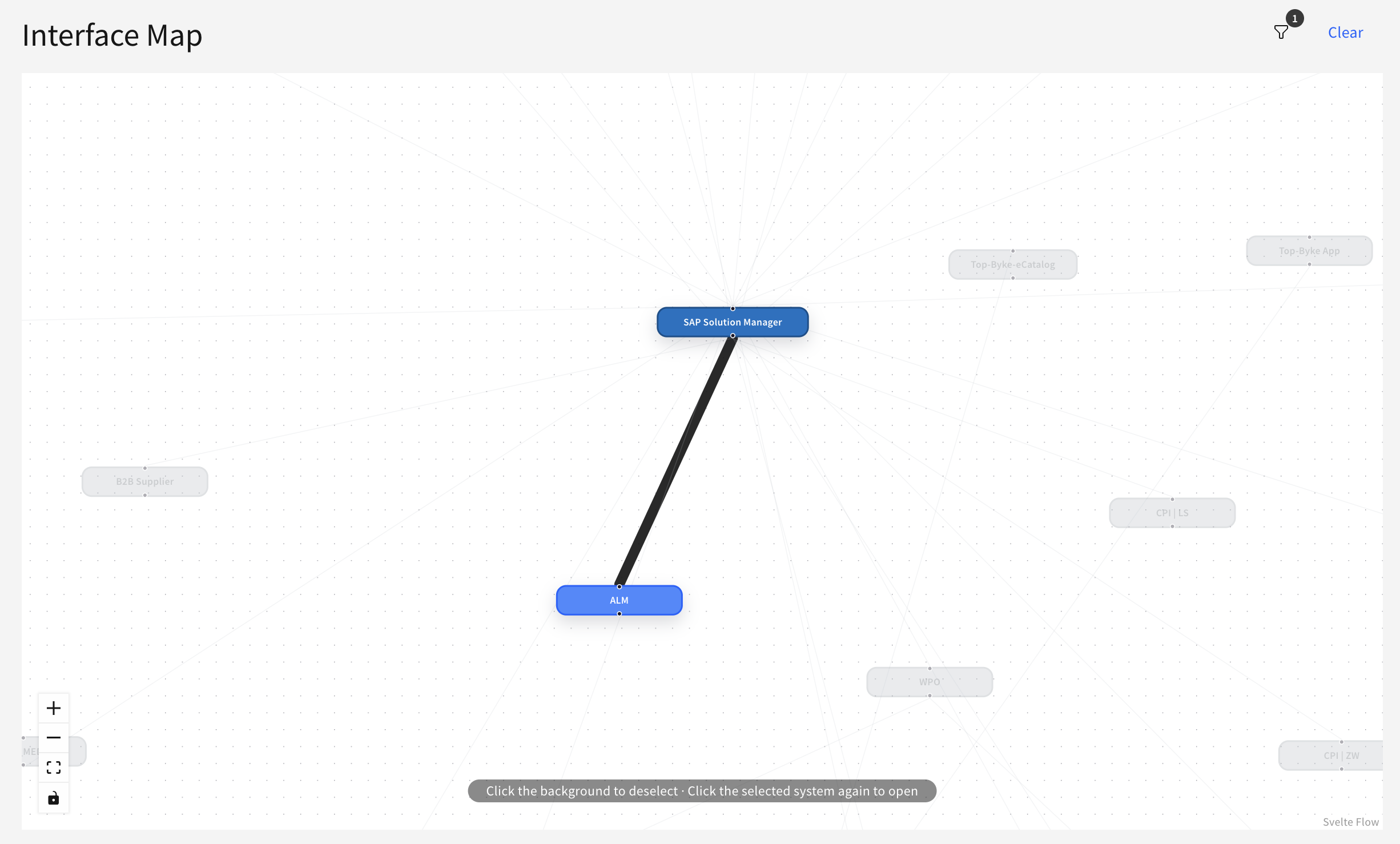

End-to-End Map Overview

What you see:

• Node - One system that is sender or receiver of at least one End-to-End integration

• Line - End-to-End integrations between two systems; more integrations result in a thicker line

• Filter - The badge shows how many of the three available filters are in use

• Clear - Removes all active filters and is shown only while a filter is applied

Only systems connected to at least one other system are shown. Integrations whose sender and receiver are the same system are not drawn.

An End-to-End integration can have several receivers. In that case one line is drawn from the sender to each receiver.

Reading the Map

A line shows that two systems are connected through End-to-End integrations, but not which system is the sender or receiver.

To analyze the direction, use Reporting → Landscape → Visualization → by System, which shows the selected system in separate As Sender and As Receiver graphs.

Line thickness is graded rather than proportional. It increases at 3, 10, 50, and 100 integrations.
Two lines with the same thickness can therefore represent different numbers of integrations.
Click a line to see the exact integrations behind it.

Node positions are recalculated when the map is opened. Default node colors are assigned automatically and do not indicate a category or status.

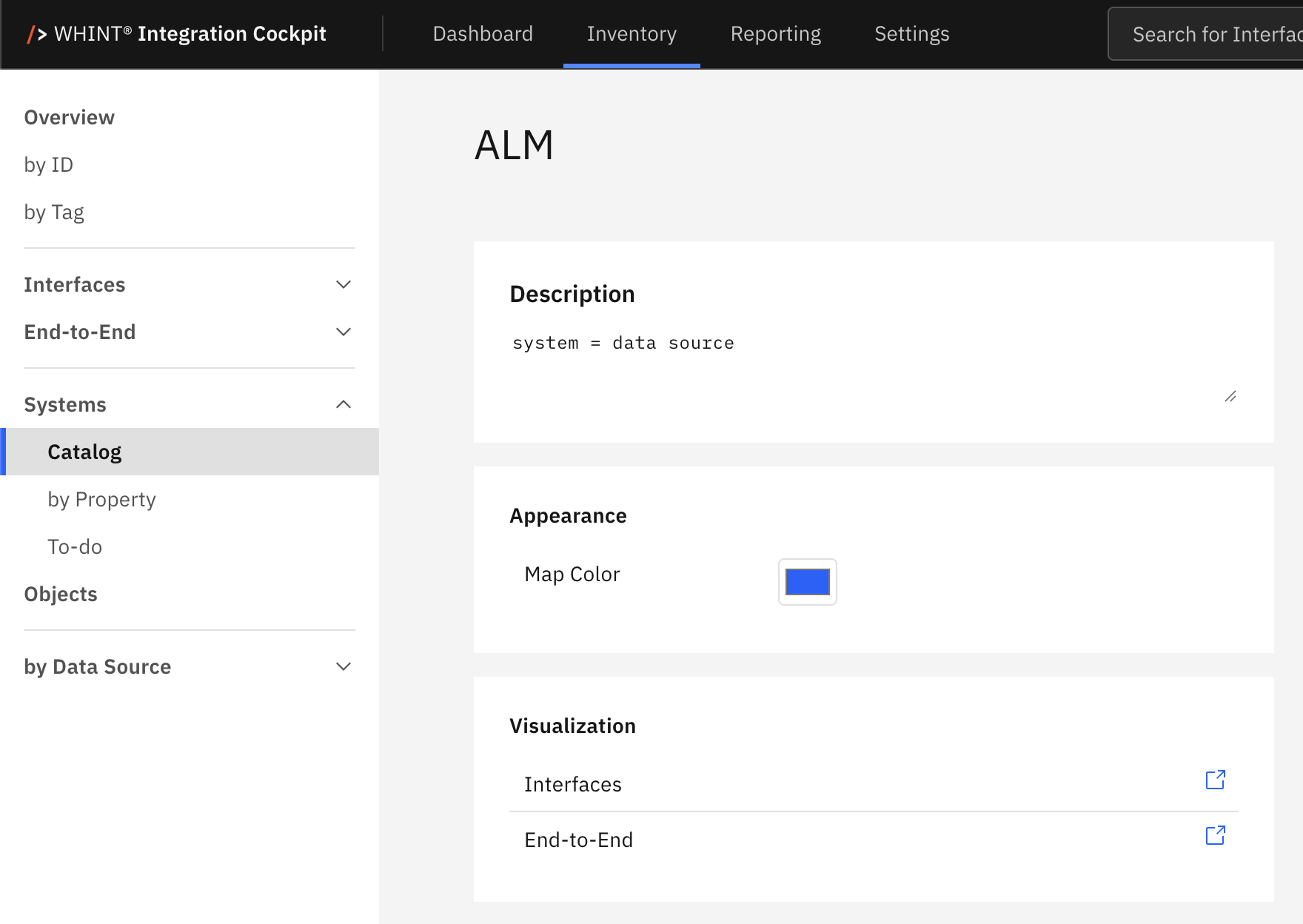

To assign a fixed color to a system, configure Appearance → Map Color under Inventory → Landscape → Systems.

Filters

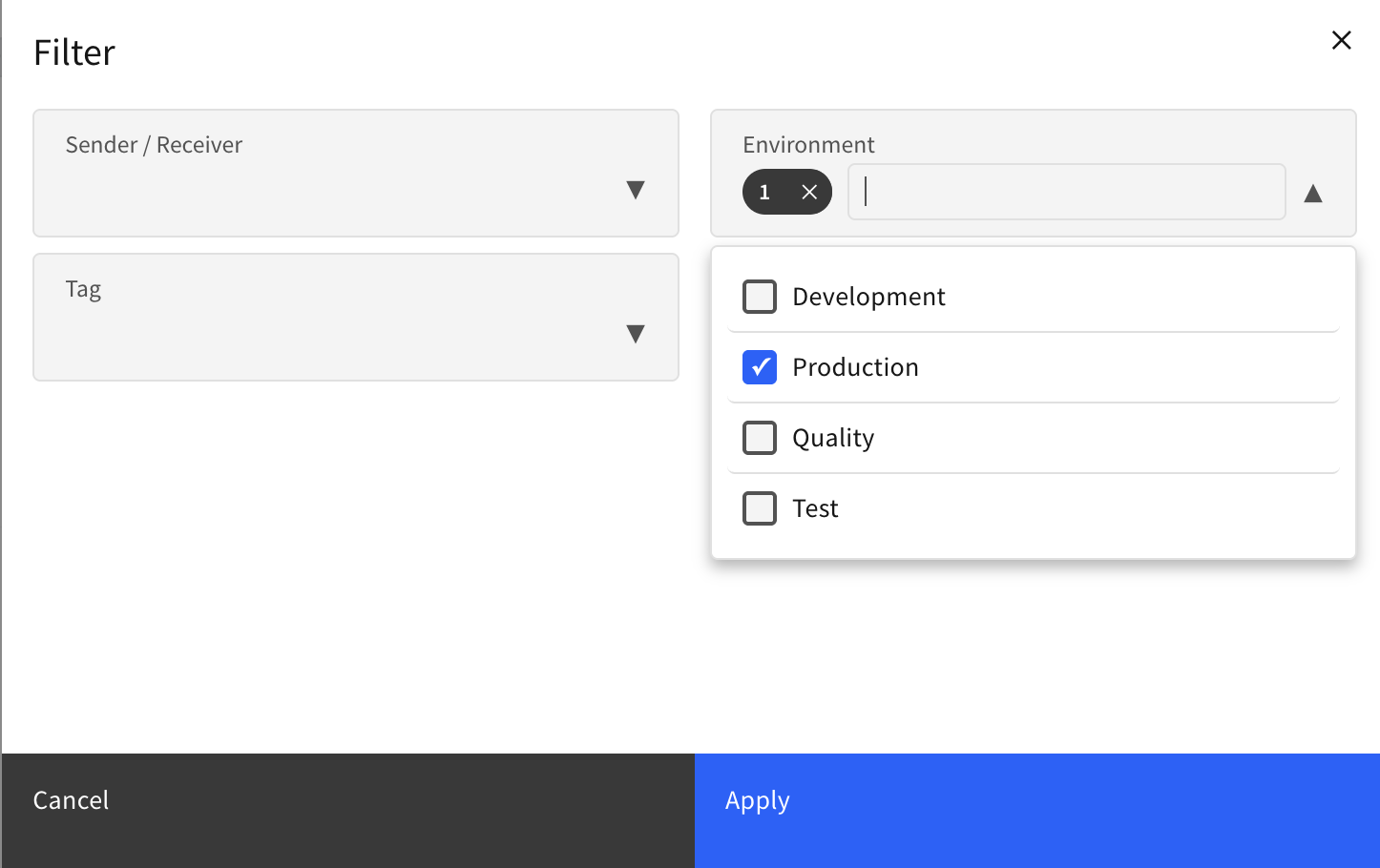

Open the filters using the funnel icon in the top right, then select the entries and confirm with Apply.

What you see:

• Sender / Receiver - Systems to include or exclude. Systems belonging to a data source show the data source name in brackets to distinguish systems with the same name

• Environment - Environments to include or exclude

• Tag - Tags or individual tag values to include or exclude

The map opens with Production selected.

Each filter can be used to include or exclude entries.

An End-to-End integration is included when at least one of the interfaces in its chain belongs to the selected environment. A chain that spans several environments therefore remains visible.

When filtering by Sender / Receiver, the selected systems and the systems directly connected to them remain visible so that the surrounding connections are preserved.

Working with the Map

The controls in the lower left corner allow you to:

• Plus button (+): Zoom in for detailed view of integration flow containers and component relationships

• Minus button (-): Zoom out for broader end-to-end process overview

• Fit view button (□): Single click to automatically adjust view to show all integration flows perfectly

• Lock button: Lock the view to prevent accidental zooming or moving while analyzing complex flows

Related Documentation

• Reporting → Landscape → Visualization → Map → Interfaces - View the same landscape based on single interfaces

• Reporting → Landscape → Visualization → by System - Select one system and analyze its senders and receivers separately

• Reporting → Landscape → Overview - View the landscape counts behind the visualization

• Inventory → End-to-End - Browse the End-to-End list opened from the map

• Inventory → Landscape → Systems - View system details and configure the Map Color

• Settings → Transformation Rules - Configure system harmonization
